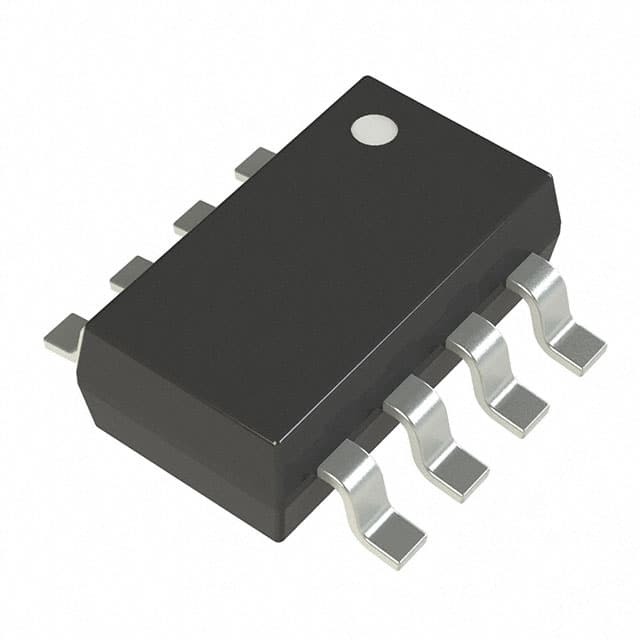

TLV3502AIDCNR

SKU: 36365

Manufacturer: Texas Instruments

Comparator Dual R-R I/O 5.5V 8-Pin SOT-23 T/R

13380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	High Speed Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Typical CMRR (dB)	70
Typical PSRR (dB)	80
Maximum Propagation Delay Time (ns)	10
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	6.5@5.5V
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	2.7
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.00001@5.5V
Maximum Quiescent Current (mA)	5@5V
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOT-23
Pin Count	8
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.75(Max)
PCB changed	8
