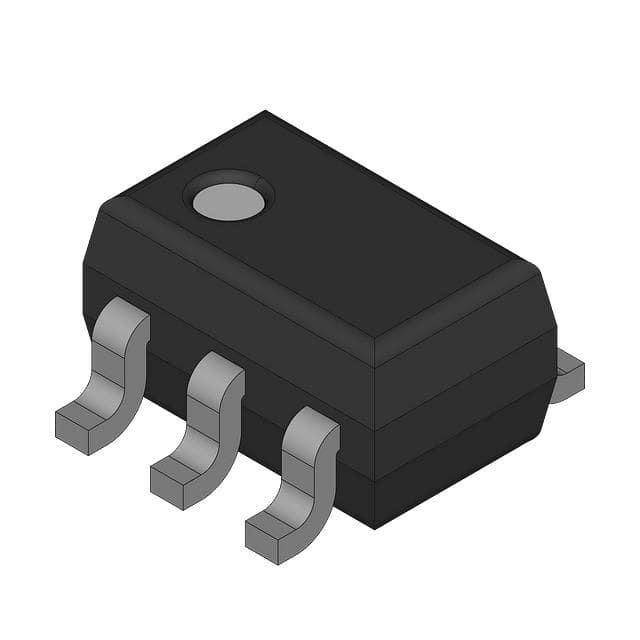

TLV341IDCKR

SKU: 85812

Manufacturer: Texas Instruments

Op Amp Single Low Voltage Amplifier R-R O/P 5.5V 6-Pin SC-70 T/R

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Voltage Amplifier
Manufacturer Type	Low Voltage Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	4@5V
Minimum Single Supply Voltage (V)	1.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.0000000066(Typ)@5V
Maximum Input Bias Current (uA)	0.0002@5V
Maximum Supply Current (mA)	0.15@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	1@5V
Typical Input Noise Voltage Density (nV/rtHz)	33@5V
Typical Voltage Gain (dB)	110
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.001@5V
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	2.3
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SC
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.15(Max)
Package Width	1.4(Max)
PCB changed	6
