TLV2774CN

SKU: 142525

Manufacturer: Texas Instruments

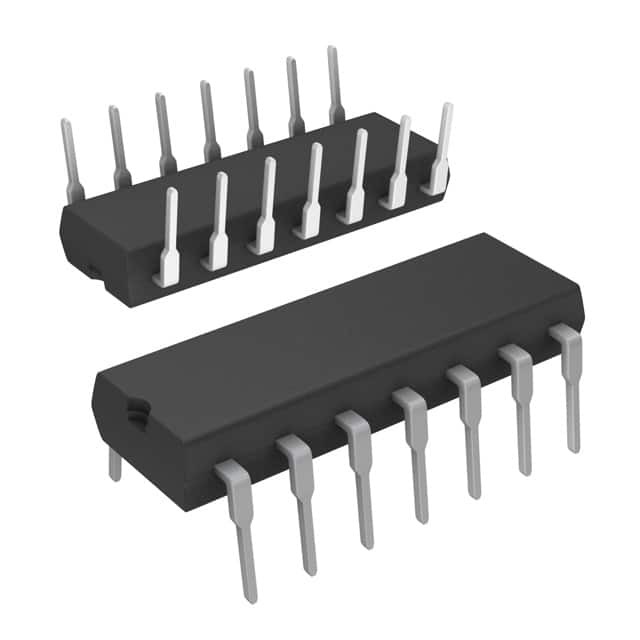

Op Amp Quad High Output Current Amplifier R-R O/P ±3V/6V 14-Pin PDIP Tube

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	High Output Current Amplifier
Manufacturer Type	High Output Current Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	2.5@±2.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Minimum Dual Supply Voltage (V)	±1.25
Maximum Dual Supply Voltage (V)	±3
Maximum Input Offset Current (uA)	0.00006@±2.5V
Maximum Input Bias Current (uA)	0.00006@±2.5V
Maximum Quiescent Current (mA)	8@5V
Typical Output Current (mA)	50(Max)
Power Supply Type	Single
Maximum Power Dissipation (mW)	1150
Typical Slew Rate (V/us)	10.5@5V
Typical Input Noise Voltage Density (nV/rtHz)	17@5V
Typical Voltage Gain (dB)	113.06
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	5.1
Typical Settling Time (ns)	600
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	14
