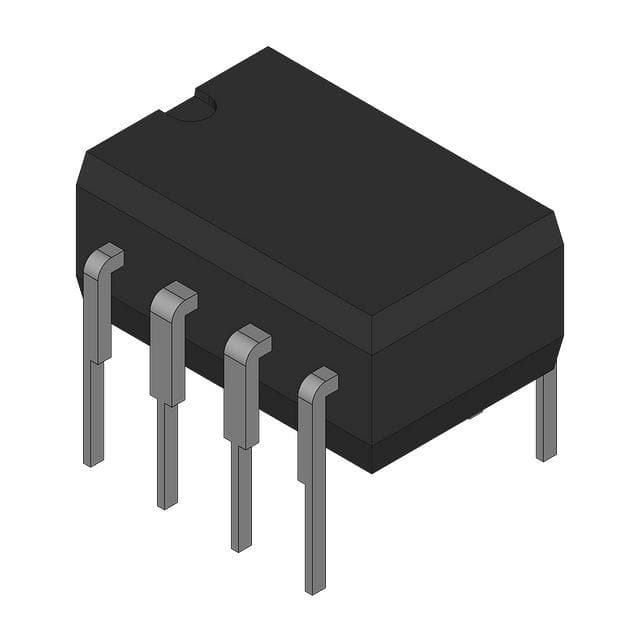

TLV2702IP

SKU: 36355

Manufacturer: Texas Instruments

Comparator Single R-R I/O ±8V/16V 8-Pin PDIP Tube

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	General Purpose Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Typical CMRR (dB)	76
Typical PSRR (dB)	105
Maximum Propagation Delay Time (ns)	240000(Typ)
Output Type	CMOS
Operating Supply Voltage-Max (V)	±8
Maximum Input Offset Voltage (mV)	5@5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±1.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±8
Typical Voltage Gain (dB)	120
Typical Voltage Gain Range (dB)	110 to 150
Maximum Input Bias Current (uA)	0.0005
Maximum Supply Current (mA)	0.0014(Typ)@5V
Typical Output Current (mA)	200@5V
Maximum Power Dissipation (mW)	1200
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Standard Package Method	DIP
Original Package	PDIP
Pin Count	8
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
