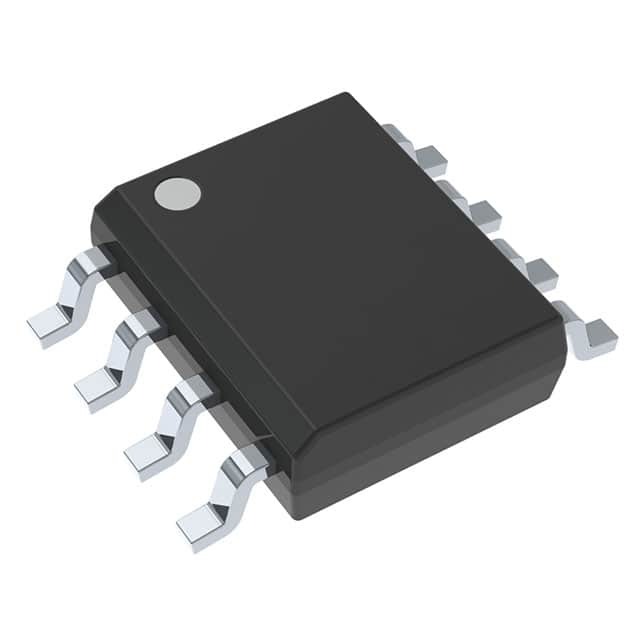

TLV2422IDR

SKU: 57669

Manufacturer: Texas Instruments

Op Amp Dual Micropower Amplifier R-R O/P ±5V/10V 8-Pin SOIC T/R

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	LinCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	2@±2.5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	10
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5
Maximum Input Offset Current (uA)	0.00006@±2.5V
Maximum Input Bias Current (uA)	0.00006@±2.5V
Maximum Quiescent Current (mA)	0.15@5V
Typical Output Current (mA)	50(Max)
Power Supply Type	Dual
Maximum Power Dissipation (mW)	725
Typical Slew Rate (V/us)	0.02@5V
Typical Input Noise Voltage Density (nV/rtHz)	100@5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	0.052
Typical Settling Time (ns)	15500
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
