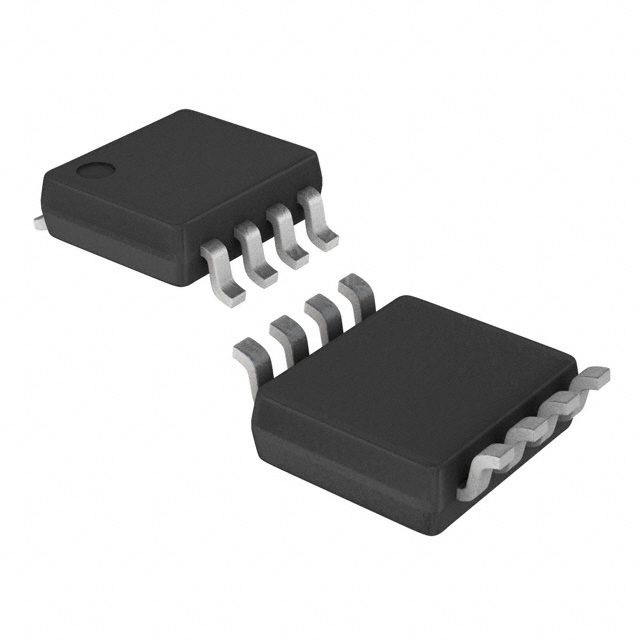

TLV1702AIDGK

SKU: 73551

Manufacturer: Texas Instruments

Comparator Dual R-R I/P ±18V/36V Automotive Medical 8-Pin VSSOP Tube

5630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Micropower Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input
Typical PSRR (dB)	96.48
Maximum Propagation Delay Time (ns)	560(Typ)
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±18
Maximum Input Offset Voltage (mV)	2.5@36V
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1.1
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.015@36V
Maximum Quiescent Current (mA)	0.15@36V
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Standard Package Method	SOP
Pin Count	8
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
