TLE2301INE

SKU: 36322

Manufacturer: Texas Instruments

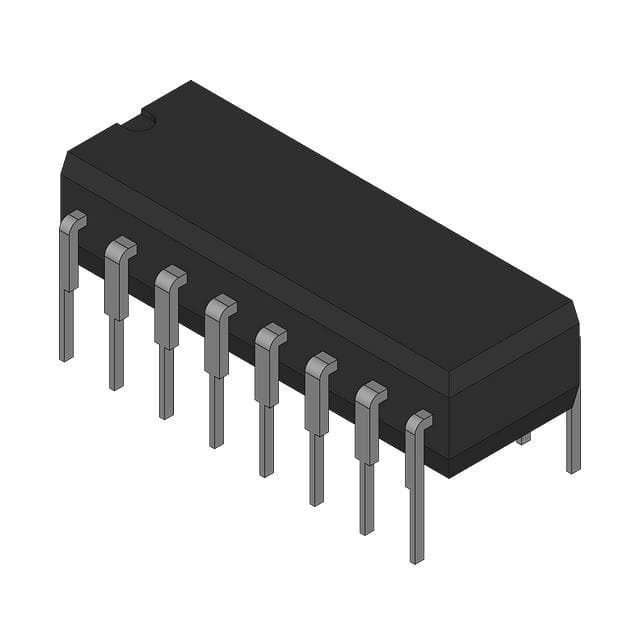

Op Amp Single Wideband Amplifier ±20V 16-Pin PDIP Tube

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	1
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	7@±5V
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±20
Maximum Input Bias Current (uA)	0.45@±5V
Maximum Quiescent Current (mA)	21@±5V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	2075
Typical Slew Rate (V/us)	12@±5V
Typical Input Noise Voltage Density (nV/rtHz)	44@±5V
Typical Voltage Gain (dB)	87
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	8
Typical Settling Time (ns)	700
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.57
Package Length	19.8
Package Width	6.35
PCB changed	16
