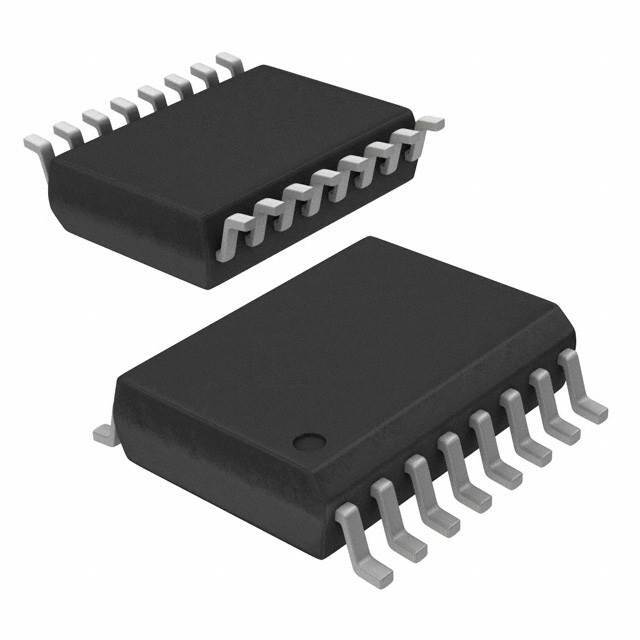

TLE2084CDW

SKU: 29228

Manufacturer: Texas Instruments

Op Amp Quad Wideband Amplifier ±19V 16-Pin SOIC Tube

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	4
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	7@±5V
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±19
Maximum Input Offset Current (uA)	0.1@±5V
Typical Input Bias Current (uA)	0.00002@±5V
Maximum Input Bias Current (uA)	0.175@±5V
Maximum Quiescent Current (mA)	7.5@±5V
Typical Output Current (mA)	80(Max)
Typical Output Resistance (Ohm)	80
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1025
Typical Slew Rate (V/us)	35@±5V
Typical Input Noise Voltage Density (nV/rtHz)	28@±5V
Typical Voltage Gain (dB)	106
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0028@±5V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	9.4
Typical Settling Time (ns)	400
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.5(Max)
Package Width	7.6(Max)
PCB changed	16
