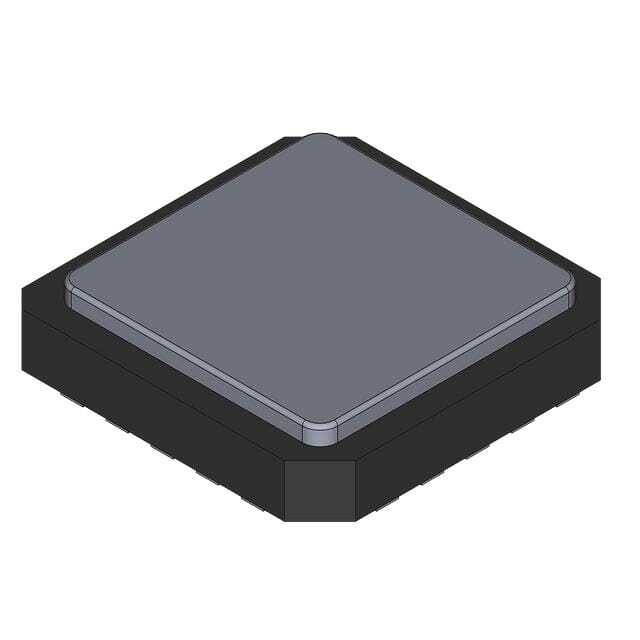

TLE2074AMFKB

SKU: 17000

Manufacturer: Texas Instruments

Op Amp Quad Wideband Amplifier ±19V 20-Pin CLLCC Tube

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	4
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	3@±5V
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±19
Maximum Input Offset Current (uA)	0.0001@±5V
Maximum Input Bias Current (uA)	0.000175@±5V
Typical Output Current (mA)	80(Max)
Power Supply Type	Dual
Typical Slew Rate (V/us)	35@±5V
Typical Input Noise Voltage Density (nV/rtHz)	48@±5V
Typical Voltage Gain (dB)	106
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0028@±5V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	9.4
Typical Settling Time (ns)	400
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CLLCC
Pin Count	20
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.03(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
