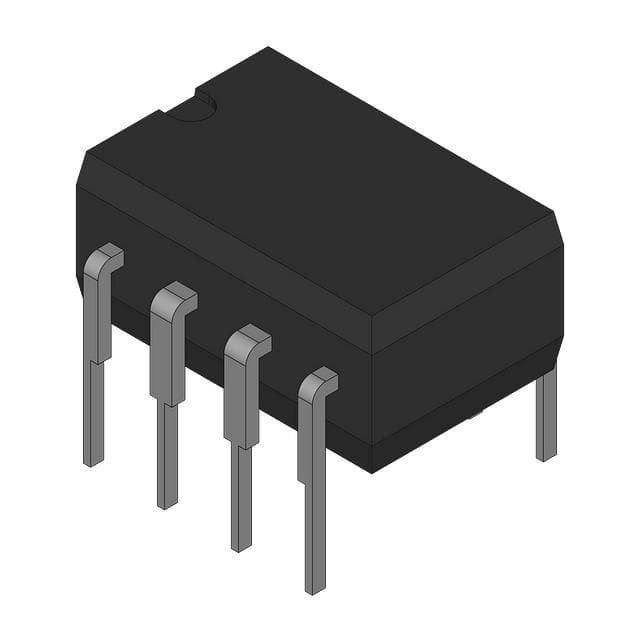

TLE2021ACP

SKU: 73545

Manufacturer: Texas Instruments

Op Amp Single Low Offset Voltage Amplifier ±20V/40V 8-Pin PDIP Tube

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Offset Voltage Amplifier
Manufacturer Type	Low Offset Voltage Amplifier
Number of Channels per Chip	1
Process Technology	BiCOM
Maximum Input Offset Voltage (mV)	0.3@5V
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	28
Maximum Single Supply Voltage (V)	40
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±18
Maximum Dual Supply Voltage (V)	±20
Maximum Input Offset Current (uA)	0.006@5V
Maximum Input Bias Current (uA)	0.07@5V
Maximum Quiescent Current (mA)	0.3@5V
Typical Output Current (mA)	20(Max)
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Typical Slew Rate (V/us)	0.5@5V
Typical Input Noise Voltage Density (nV/rtHz)	21@5V
Typical Voltage Gain (dB)	123.52
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.09@5V
Minimum CMRR (dB)	85
Minimum CMRR Range (dB)	85 to 90
Typical Gain Bandwidth Product (MHz)	1.2
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
