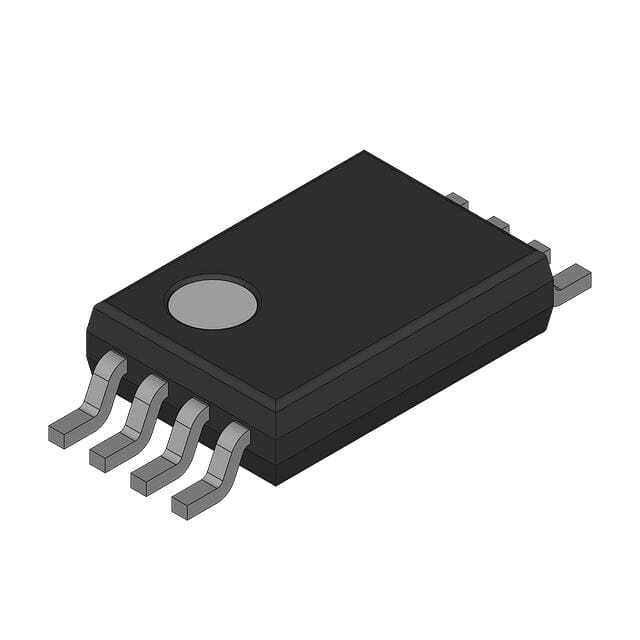

TLC7701MPWREP

SKU: 156665

Manufacturer: Texas Instruments

Processor Supervisor 1.1V 1 Active High/Active Low/Push-Pull 8-Pin TSSOP T/R

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	4.2
Output Driver	Active High/Active Low/Push-Pull
Minimum Reset Threshold Voltage (V)	1.04
Typical Reset Threshold Voltage (V)	1.1
Maximum Reset Threshold Voltage (V)	1.16
Operating Supply Voltage-Min (V)	2
Operating Supply Voltage-Max (V)	6
Maximum Supply Current (uA)	18
Maximum Power Dissipation (mW)	525
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Type	Voltage Supervisory
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	4.5(Max)
PCB changed	8
