TLC7225IDWR

SKU: 43401

Manufacturer: Texas Instruments

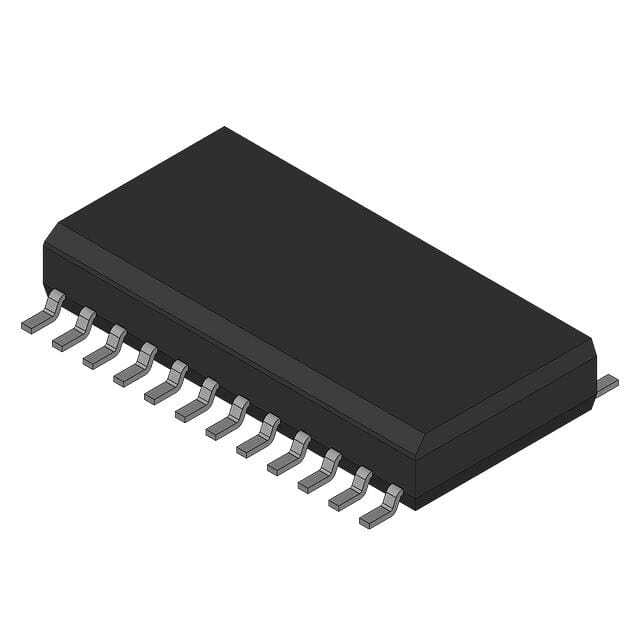

DAC 4-CH R-2R 8-bit 24-Pin SOIC T/R

210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	8bit
Conversion Rate	143ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	7
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	14.25
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	15.75
Minimum Dual Supply Voltage (V)	0/11.4
Typical Dual Supply Voltage (V)	-5/12
Maximum Dual Supply Voltage (V)	-5.5/16.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Integral Nonlinearity Error	±1LSB
Full Scale Error	±2LSB
Digital Supply Support	No
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
