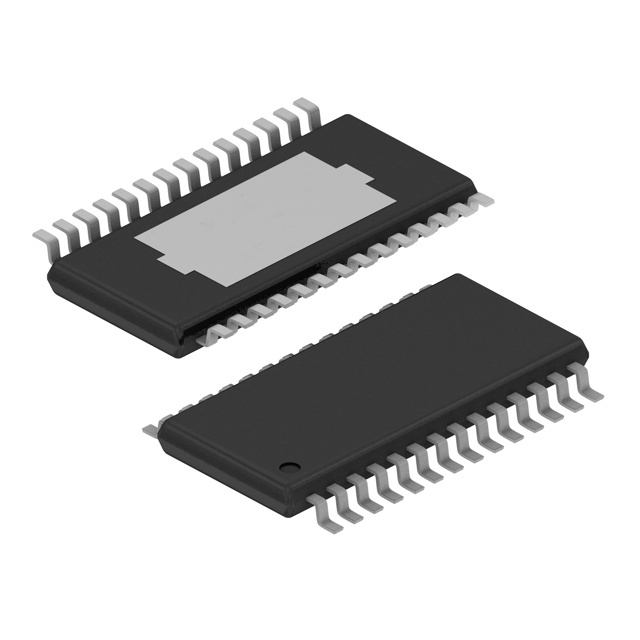

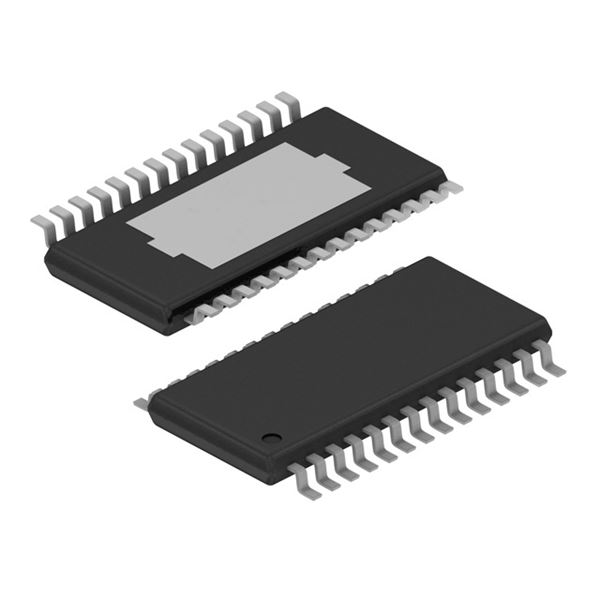

TLC5943PWP

SKU: 71641

Manufacturer: Texas Instruments

LED Driver 16 Segment 50000uA Supply Current 28-Pin HTSSOP EP Tube

280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Segments	16
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Maximum Supply Current (uA)	50000
Low Level Output Current (uA)	5000
High Level Output Current (uA)	-1000
Maximum Power Dissipation (mW)	3958
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Pin Count	28
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
