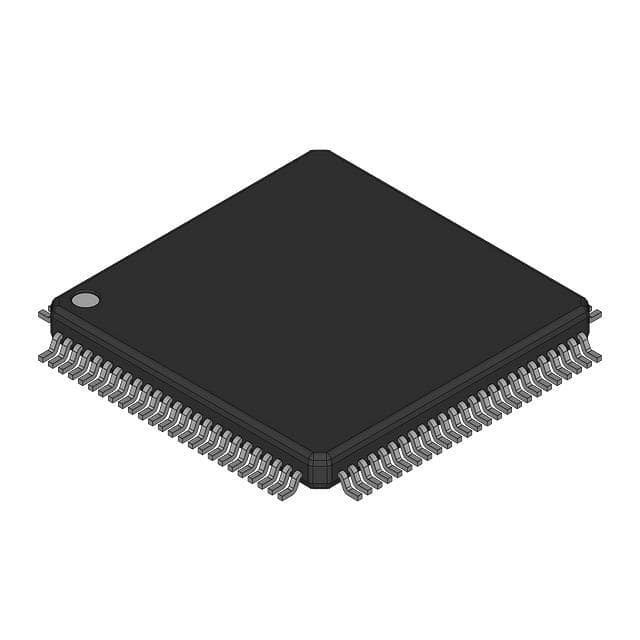

TLC5904PZP

SKU: 99896

Manufacturer: Texas Instruments

LED Driver 70000uA Supply Current 100-Pin HTQFP EP Tray

7430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Output Voltage (V)	17(Max)
Maximum Supply Current (uA)	70000
Low Level Output Current (uA)	1000
High Level Output Current (uA)	-1000
Maximum Power Dissipation (mW)	4700
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tray
Standard Package Method	QFP
Pin Count	100
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.2(Max)
Package Width	14.2(Max)
PCB changed	100
