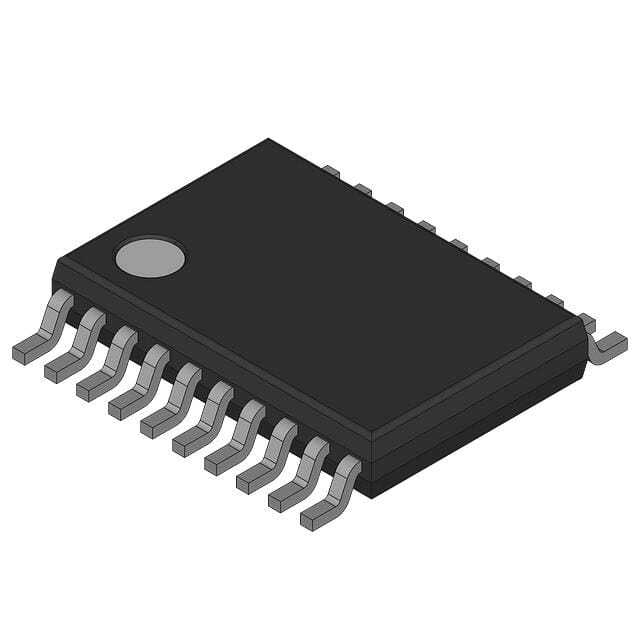

TLC075AIPWP

SKU: 151440

Manufacturer: Texas Instruments

Op Amp Quad Wideband Amplifier ±8V/16V 20-Pin HTSSOP EP Tube

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	4
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	1.4@5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±8
Typical Low Level Output Voltage (V)	0.48
Typical High Level Output Voltage (V)	4.3
Maximum Input Offset Current (uA)	0.00005@5V
Typical Input Bias Current (uA)	0.0000015@5V
Maximum Input Bias Current (uA)	0.00005@5V
Maximum Quiescent Current (mA)	10@5V
Typical Output Current (mA)	57@5V
Typical Output Resistance (Ohm)	0.25
Power Supply Type	Single
Maximum Power Dissipation (mW)	4790
Typical Slew Rate (V/us)	16@5V
Typical Input Noise Voltage Density (nV/rtHz)	12@5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	80 to 85
Typical Gain Bandwidth Product (MHz)	10
Typical Settling Time (ns)	390
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
