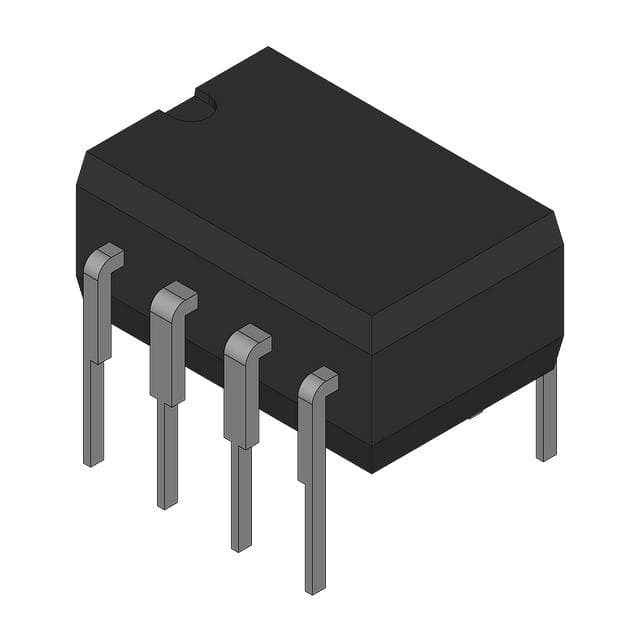

TLC071CP

SKU: 16990

Manufacturer: Texas Instruments

Op Amp Single Wideband Amplifier ±8V/16V 8-Pin PDIP Tube

2940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	1
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	1.9@5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±8
Typical Low Level Output Voltage (V)	0.48
Typical High Level Output Voltage (V)	4.3
Maximum Input Offset Current (uA)	0.00005@5V
Typical Input Bias Current (uA)	0.0000015@5V
Maximum Input Bias Current (uA)	0.00005@5V
Maximum Quiescent Current (mA)	2.5@5V
Typical Output Current (mA)	57@5V
Typical Output Resistance (Ohm)	0.25
Power Supply Type	Single
Maximum Power Dissipation (mW)	1200
Typical Slew Rate (V/us)	16@5V
Typical Input Noise Voltage Density (nV/rtHz)	12@5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	80 to 85
Typical Gain Bandwidth Product (MHz)	10
Typical Settling Time (ns)	390
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
