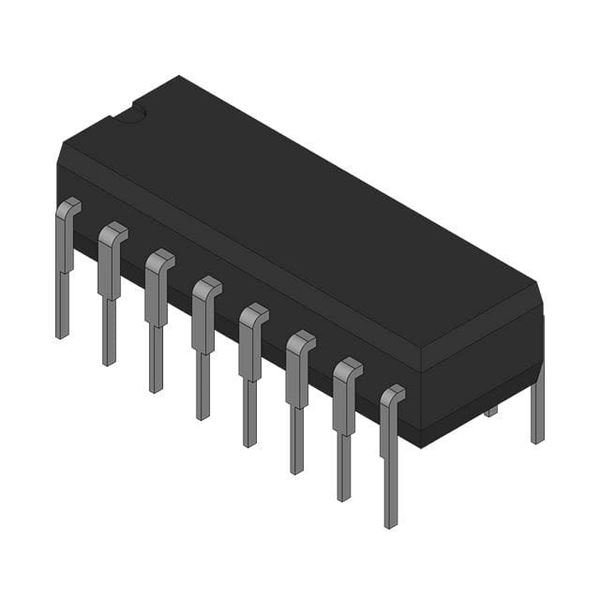

TL2575-05IN

SKU: 144335

Manufacturer: Texas Instruments

Conv DC-DC 4.75V to 40V Step Down Single-Out 5V 1A 16-Pin PDIP Tube

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Fixed
Switching Frequency (kHz)	58
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	4.75
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4.75 to 40
Typical Quiescent Current (uA)	5000
Efficiency (%)	77(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	16
