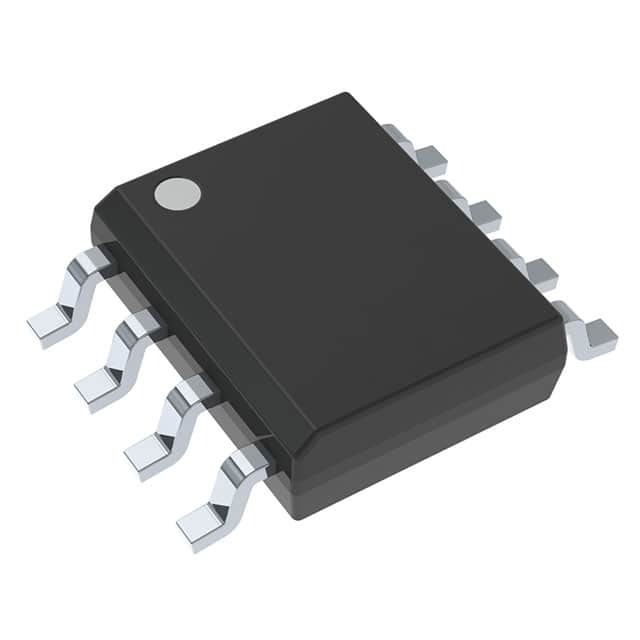

TL031CDR

SKU: 64564

Manufacturer: Texas Instruments

Op Amp Single Low Power Amplifier ±15V 8-Pin SOIC T/R

12080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	3.5@±5V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±15
Maximum Input Offset Current (uA)	0.0001@±5V
Typical Input Bias Current (uA)	0.000002@±5V
Maximum Input Bias Current (uA)	0.0002@±5V
Maximum Quiescent Current (mA)	0.25@±5V
Typical Output Current (mA)	40(Max)
Power Supply Type	Dual
Typical Slew Rate (V/us)	2@±5V
Typical Input Noise Voltage Density (nV/rtHz)	61@±5V
Input Offset Voltage Drift (uV/°C)	0.04
Typical Voltage Gain (dB)	81.58
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.003@±5V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
