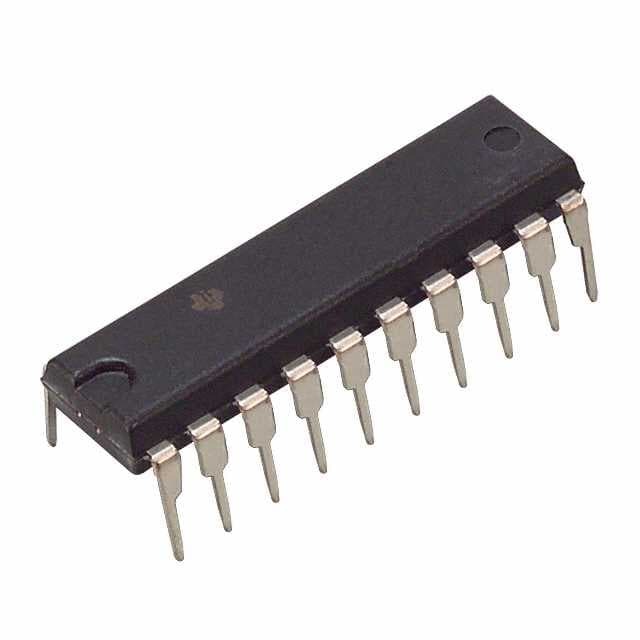

TIBPAL16L8-15CN

SKU: 101759

Manufacturer: Texas Instruments

SPLD PAL Family 50MHz 5V 20-Pin PDIP

90 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	PAL
Maximum Number of User I/Os	6
Programmability	Yes
Reprogrammability Support	No
In-System Programmability	No
Opr. Frequency (MHz)	50
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Operating Current (mA)	180
Operating Temperature-Min	0
Operating Temperature-Max	75
Supplier Temperature Grade	Commercial
Tradename	PAL
Pin Count	20
Standard Package Method	DIP
Original Package	PDIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	26.92(Max)
Package Width	6.6(Max)
PCB changed	20
