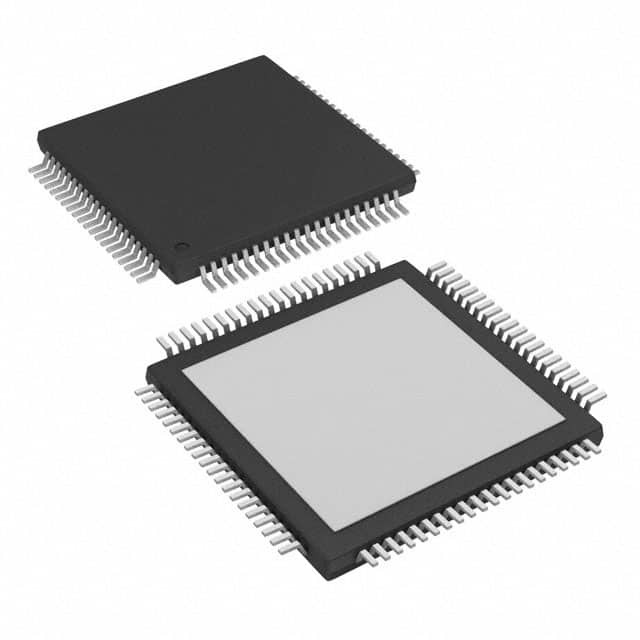

THS8200PFP

SKU: 128149

Manufacturer: Texas Instruments

DAC 3-CH 11-bit 80-Pin HTQFP EP Tray

8000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Video
Resolution	11bit
Conversion Rate	205Msps
Number of DAC Channels	3
Number of Outputs per Chip	3
Maximum Settling Time (us)	0.0066(Typ)
Digital Interface Type	Serial (I2C)
Output Type	Voltage
Output Polarity	Unipolar
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	735
Integral Nonlinearity Error	±5LSB
Digital Supply Support	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Pin Count	80
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.2(Max)
Package Width	12.2(Max)
PCB changed	80
