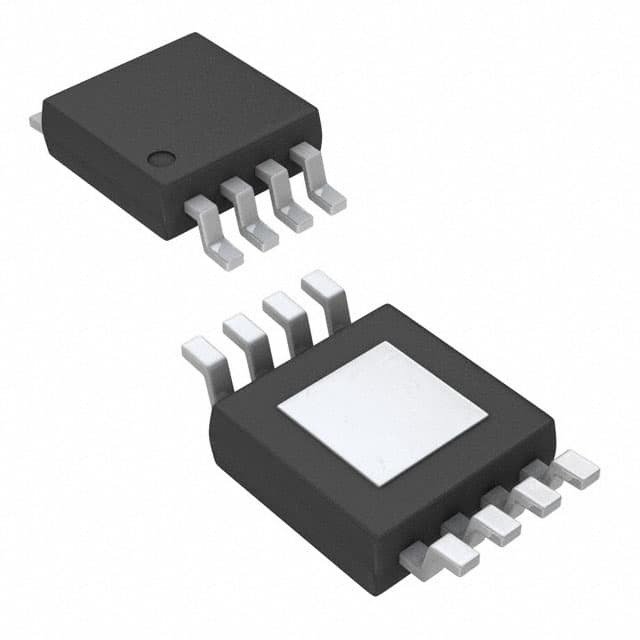

THS4061IDGNR

SKU: 29135

Manufacturer: Texas Instruments

Op Amp Single High Speed Amplifier ±16.5V/33V 8-Pin HVSSOP EP T/R

40 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Process Technology	BiCOM
Maximum Input Offset Voltage (mV)	8@±5V@-40C to 85C
Minimum Single Supply Voltage (V)	9
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	33
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±16.5
Maximum Input Offset Current (uA)	0.25@±5V@-40C to 85C
Typical Input Bias Current (uA)	3@±5V@-40C to 85C
Maximum Input Bias Current (uA)	6@±5V@-40C to 85C
Maximum Quiescent Current (mA)	10@±5V@-40C to 85C
Typical Output Current (mA)	75@±5V
Typical Output Resistance (Ohm)	12
Power Supply Type	Dual
Maximum Power Dissipation (mW)	2140
Typical Slew Rate (V/us)	350@±5V
Typical Input Noise Voltage Density (nV/rtHz)	14.5@±5V
Input Offset Voltage Drift (uV/°C)	15(Typ)
Typical Voltage Gain (dB)	78.06
Typical Noninverting Input Current Noise Density (pA/rtHz)	1.6@±5V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	180
Typical Settling Time (ns)	150
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
