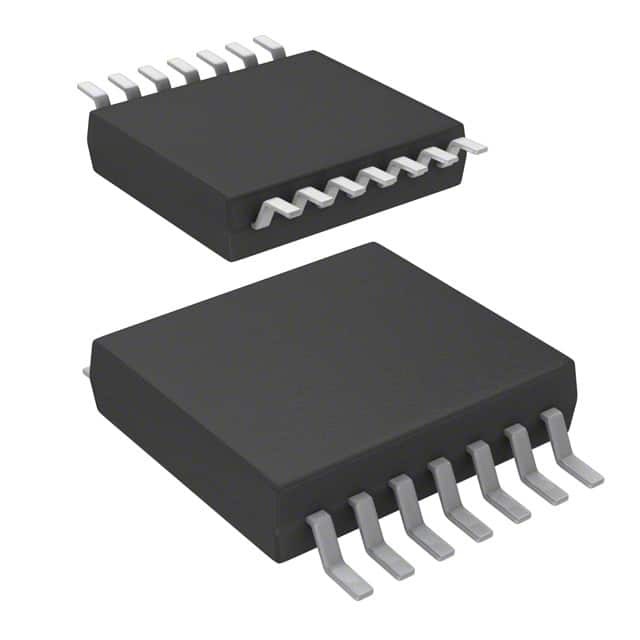

TCA9543APWR

SKU: 135250

Manufacturer: Texas Instruments

Analog Switch Dual SPST 14-Pin TSSOP T/R

50390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Dual SPST
Switch Architecture	SPST
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	1
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.65
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	5.5
Typical Supply Current (mA)	50@5.5V
Maximum High Level Output Current (mA)	25
Maximum On Resistance (Ohm)	70@1.95V
Maximum On Resistance Range (Ohm)	60 to 80
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
