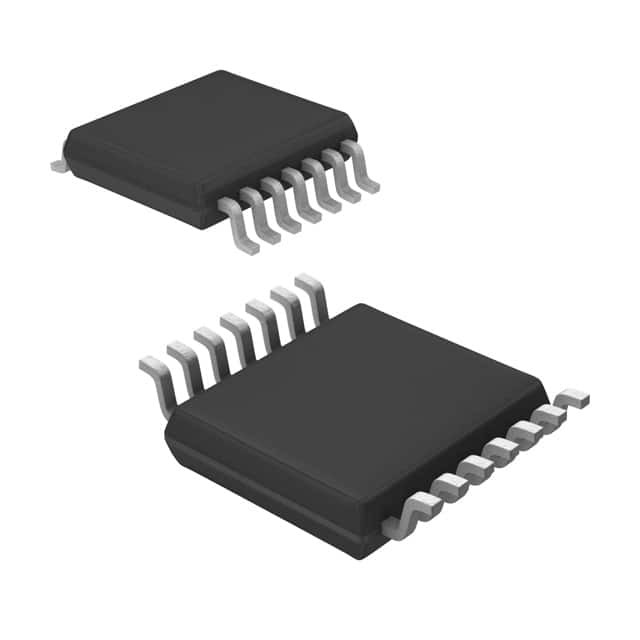

TCA9534APWR Texas Instruments

TCA9534APWR

SKU: 64517

Manufacturer: Texas Instruments

I2C/SMBus Interface 5.5V 16-Pin TSSOP T/R

Request Free Samples

7360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of I/Os	8
Number of Addresses	8
Manual Reset	No
Interface Type	SMBus
I2C Bus Interface Mode	Fast Mode
Interrupt Output	Yes
Output Type	Open Drain
Operating Supply Voltage-Min (V)	1.65
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum ESD Protection Voltage (kV)	1@CDM/2@HBM
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
