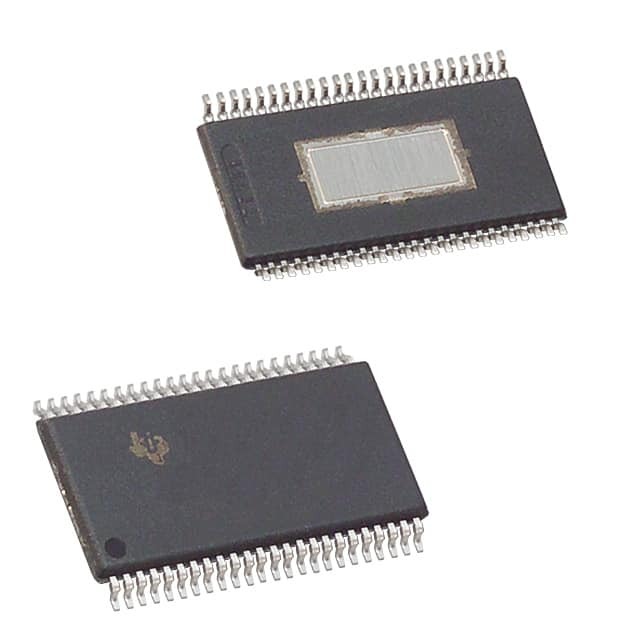

TAS5766MDCA

SKU: 50443

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 50W Class-D 48-Pin HTSSOP EP Tube

740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.05%@8Ohm@1W
Output Signal Type	Differential
Output Type	2-Channel Stereo
Maximum Output Current (mA)	7500(Typ)@24V
Minimum Dual Supply Voltage (V)	3
Typical Dual Supply Voltage (V)	9
Maximum Dual Supply Voltage (V)	3.6
Maximum Quiescent Current (mA)	50@24V
Maximum Supply Current (mA)	32@3.3V
Minimum Load Resistance (Ohm)	2
Power Supply Type	Quint
Typical Output Power x Channels @ Load (W)	50x2@4Ohm
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.6(Max)
Package Width	6.2(Max)
PCB changed	48
