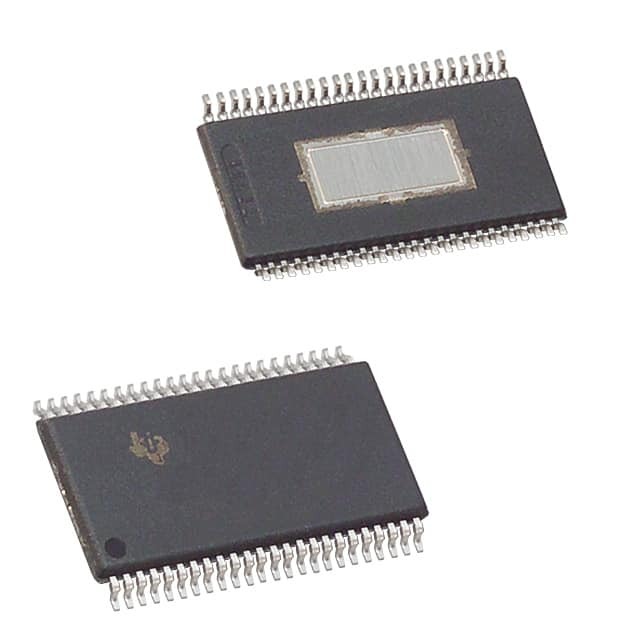

TAS5756MDCA

SKU: 123014

Manufacturer: Texas Instruments

Audio Amp Speaker 1-CH Mono/2-CH Stereo 56W Class-D 48-Pin HTSSOP EP Tube

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.007%@8Ohm@1W
Output Signal Type	Differential
Output Type	2-Channel Stereo
Maximum Input Offset Voltage (mV)	15@24V
Minimum Dual Supply Voltage (V)	2.9
Typical Dual Supply Voltage (V)	24
Maximum Dual Supply Voltage (V)	3.63
Minimum Load Resistance (Ohm)	2
Power Supply Type	Quad
Typical Output Power x Channels @ Load (W)	28x2@4Ohm
Maximum Power Dissipation (mW)	1002
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.6(Max)
Package Width	6.2(Max)
PCB changed	48
