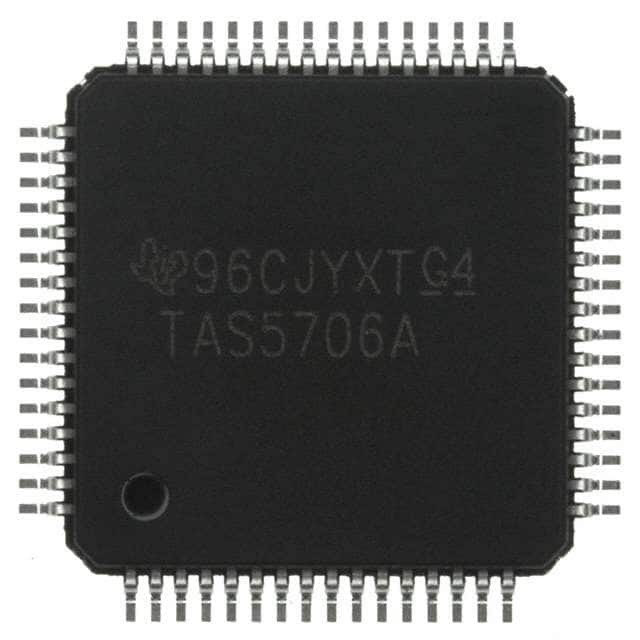

TAS5706APAPR

SKU: 21936

Manufacturer: Texas Instruments

Audio Amp Headphone/Speaker 1-CH Mono/2-CH Stereo/4-CH Stereo 20.6W Class-D 64-Pin HTQFP EP T/R

6110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Headphone/Speaker
Amplifier Type	Class-D
THDN	0.05%@8Ohm@10W
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Dual Supply Voltage (V)	3
Typical Dual Supply Voltage (V)	3.3
Maximum Dual Supply Voltage (V)	3.6
Maximum Quiescent Current (mA)	57@18V
Maximum Supply Current (mA)	80@3.3V
Power Supply Type	Dual
Typical Output Power x Channels @ Load (W)	20.6x1@8Ohm
Maximum Power Dissipation (mW)	2890
Operating Temperature-Min	0
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
