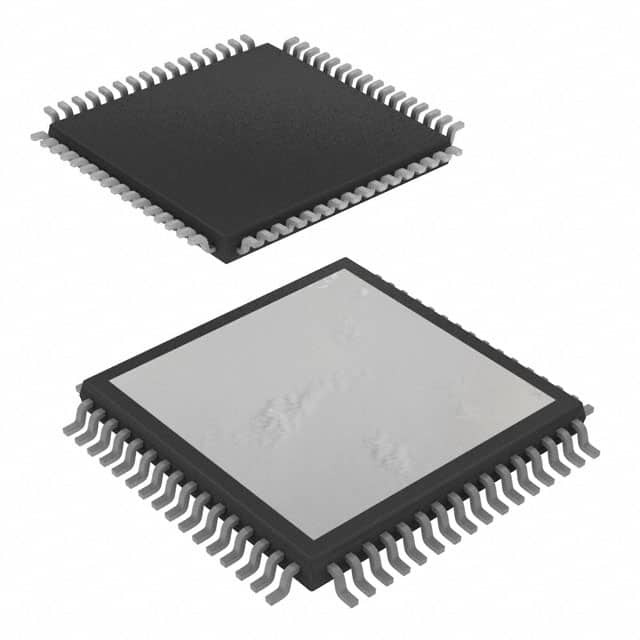

TAS5630BPHDR

SKU: 92612

Manufacturer: Texas Instruments

Audio Amp Speaker 1-CH Mono/2-CH Stereo/4-CH Stereo 480W Class-D 64-Pin HTQFP EP T/R

16220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.03%@4Ohm@1W
Output Signal Type	Differential
Output Type	1-Channel Mono
Maximum Output Current (mA)	9
Input Voltage	5Vp-p
Minimum Dual Supply Voltage (V)	10.8
Typical Dual Supply Voltage (V)	12
Maximum Dual Supply Voltage (V)	13.2
Minimum Load Resistance (Ohm)	1.8
Power Supply Type	Triple
Typical Output Power x Channels @ Load (W)	300x2@4Ohm
Maximum Power Dissipation (mW)	2700(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.05(Max)
Package Width	14.05(Max)
PCB changed	64
