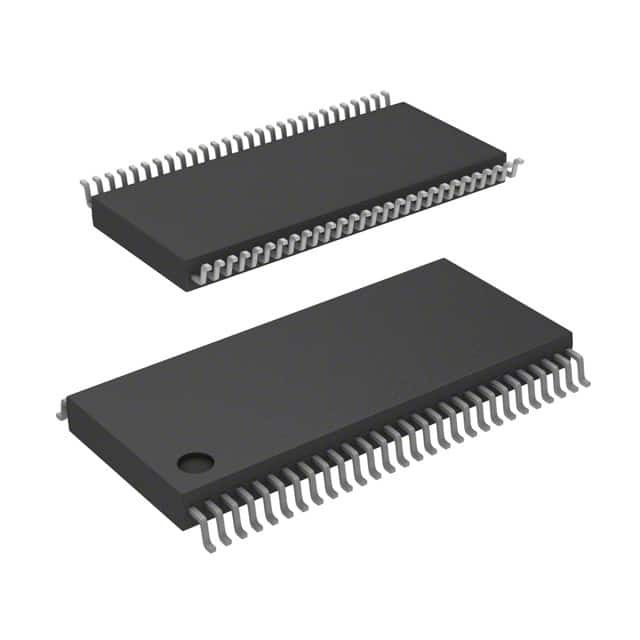

SN75LVDS83DGGR

SKU: 71292

Manufacturer: Texas Instruments

LVDS Transmitter 0.454V 56-Pin TSSOP T/R

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Transmitter
Number of Drivers	5
Number of Receivers	0
Number of Elements per pcs	4
Minimum Operating Frequency (MHz)	31
Maximum Operating Frequency (MHz)	68
Input Signal Type	LVCMOS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Differential Output Voltage (V)	0.454
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	25
Maximum Power Dissipation (mW)	1377
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	56
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
