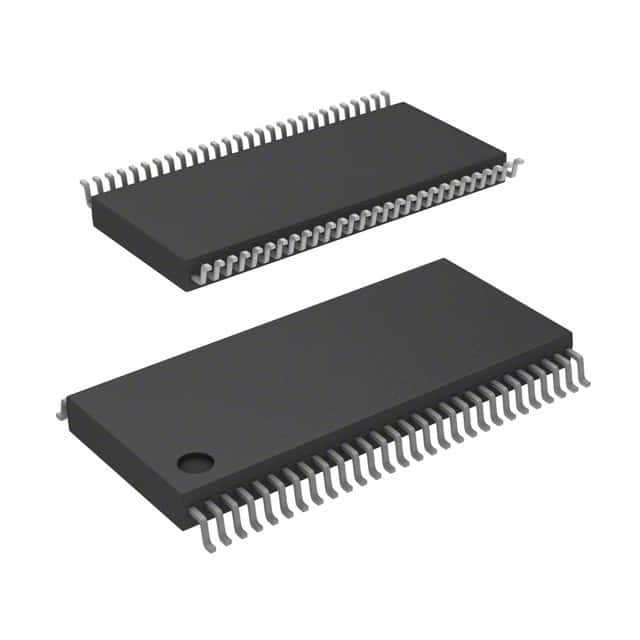

SN75LVDS82DGG

SKU: 21664

Manufacturer: Texas Instruments

LVDS Receiver 1904Mbps 56-Pin TSSOP Tube

9610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Receiver
Number of Drivers	0
Number of Receivers	5
Number of Elements per pcs	4
Transmission Data Rate (Mbps)	1904
Minimum Operating Frequency (MHz)	31
Maximum Operating Frequency (MHz)	68
Input Signal Type	LVDS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1
Differential Input High Threshold Voltage (V)	0.1
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	20
Maximum Power Dissipation (mW)	1377
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	56
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
