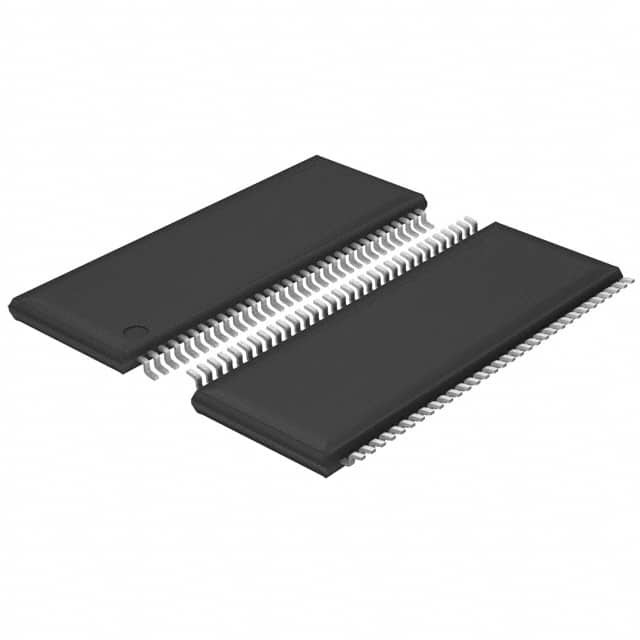

SN75LVDS386DGGR

SKU: 57275

Manufacturer: Texas Instruments

LVDS Receiver 250Mbps 64-Pin TSSOP T/R

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Receiver
Number of Drivers	0
Number of Receivers	16
Number of Elements per pcs	16
Transmission Data Rate (Mbps)	250
Maximum Propagation Delay Time (ns)	4
Input Signal Type	LVDS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	40
Maximum Power Dissipation (mW)	2094
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	17.1(Max)
Package Width	6.2(Max)
PCB changed	64
