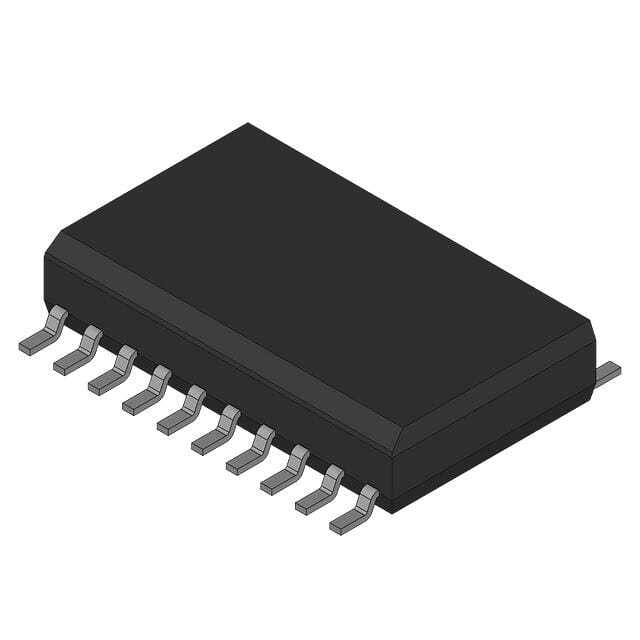

SN75ALS161DWR Texas Instruments

SN75ALS161DWR

SKU: 99519

Manufacturer: Texas Instruments

Bus XCVR Single 8-CH 3-ST 20-Pin SOIC T/R

Request Free Samples

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	ALS
Logic Function	Bus Transceiver/Register
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	0
Number of Input Enables per Element	0
Number of Direction Control Inputs	0
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	45
Maximum Propagation Delay Time @ Maximum CL (ns)	20@4.5V to 5V
Propagation Delay Test Condition (pF)	30
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	48
Maximum High Level Output Current (mA)	-5.2
Typical Quiescent Current (uA)	55000
Maximum Quiescent Current (uA)	75000
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	20
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
