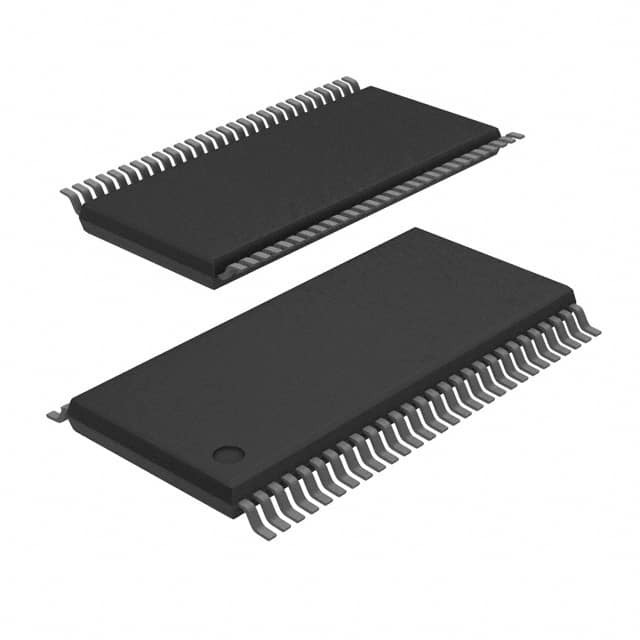

SN74LVTH16952DGG Texas Instruments

SN74LVTH16952DGG

SKU: 156271

Manufacturer: Texas Instruments

Bus XCVR Dual 16-CH 3-ST 56-Pin TSSOP T/R

Request Free Samples

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	LVT
Logic Function	Registered Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	2
Number of Channels per Chip	16
Number of Selection Inputs per Element	0
Number of Output Enables per Element	2 Low
Number of Input Enables per Element	2 Low
Number of Direction Control Inputs	0
Bus Hold	Yes
Triggering Type	Positive-Edge
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	6.2
Maximum Propagation Delay Time @ Maximum CL (ns)	2.7(Typ)@3.3V
Propagation Delay Test Condition (pF)	50
Process Technology	BiCMOS
Input Level	LVTTL
Output Level	LVTTL
Output Type	3-State
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	-32
Maximum Quiescent Current (uA)	5000
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	3.6
Tolerant I/Os (V)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	56
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
