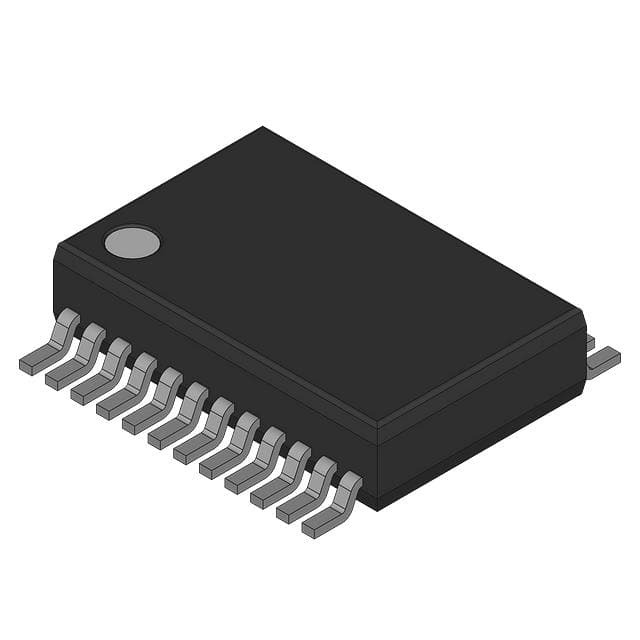

SN74LVC827ADB

SKU: 85346

Manufacturer: Texas Instruments

Buffer/Line Driver 10-CH Non-Inverting 3-ST CMOS 24-Pin SSOP T/R

4470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Logic Family	LVC
Logic Function	Buffer/Line Driver
Number of Elements per pcs	1
Number of Channels per Chip	10
Number of Inputs per Chip	10
Number of Input Enables per Chip	0
Number of Outputs per Chip	10
Number of Output Enables per Chip	2 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	7.1@2.7V
Absolute Propagation Delay Time (ns)	8.5
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Tolerant I/Os (V)	5
Maximum Quiescent Current (uA)	10
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	24
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	8.5(Max)
Package Width	5.6(Max)
PCB changed	24
