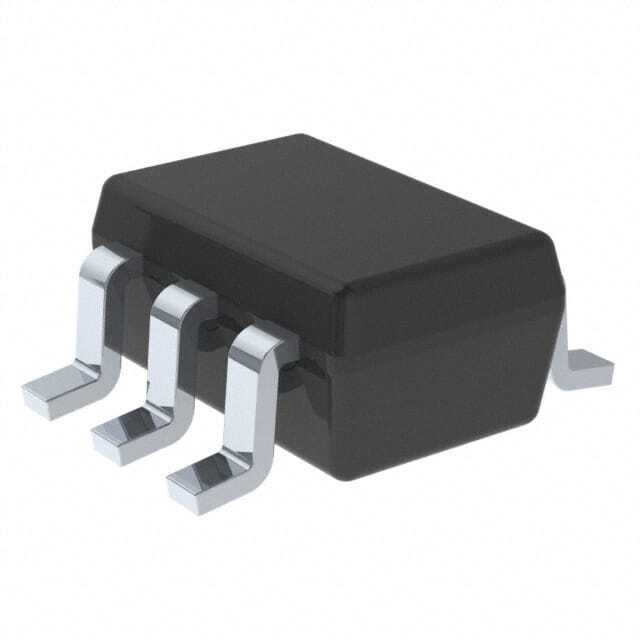

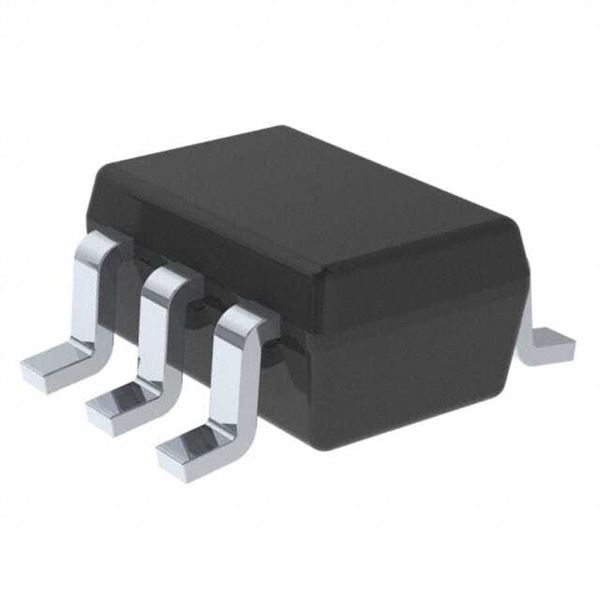

SN74LVC1G18DCKR

SKU: 28804

Manufacturer: Texas Instruments

Demultiplexer Single 1-to-2 6-Pin SC-70 T/R

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	LVC
Logic Function	Demultiplexer
Demultiplexing Capability	1-of-2
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Input Enables per Element	1
Number of Element Outputs	2
Number of Output Enables per Element	0
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	3.2@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	12.7
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5.5 Inputs
Maximum Quiescent Current (mA)	0.01
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	6
Original Package	SC-70
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.15(Max)
Package Width	1.4(Max)
PCB changed	6
