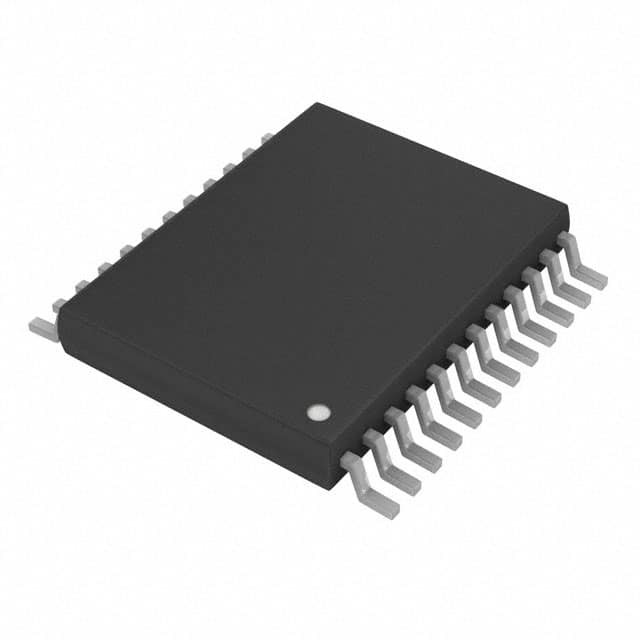

SN74LV8151DGVR

SKU: 14638

Manufacturer: Texas Instruments

Universal Schmitt Trigger Buffer 10-CH Inverting/Non-Inverting 3-ST CMOS 24-Pin TVSOP T/R

3830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Family	LV
Logic Function	Universal Schmitt Trigger Buffer
Number of Elements per pcs	3
Number of Channels per Chip	10
Number of Inputs per Chip	10
Number of Input Enables per Chip	1 Low/High
Number of Outputs per Chip	10
Number of Output Enables per Chip	1 Low
Bus Hold	No
Polarity	Inverting/Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	28(Typ)@2.5V
Absolute Propagation Delay Time (ns)	58
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	12
Maximum High Level Output Current (mA)	-12
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5 Inputs
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	24
Original Package	TVSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	24
