SN74LV4052AN

SKU: 120765

Manufacturer: Texas Instruments

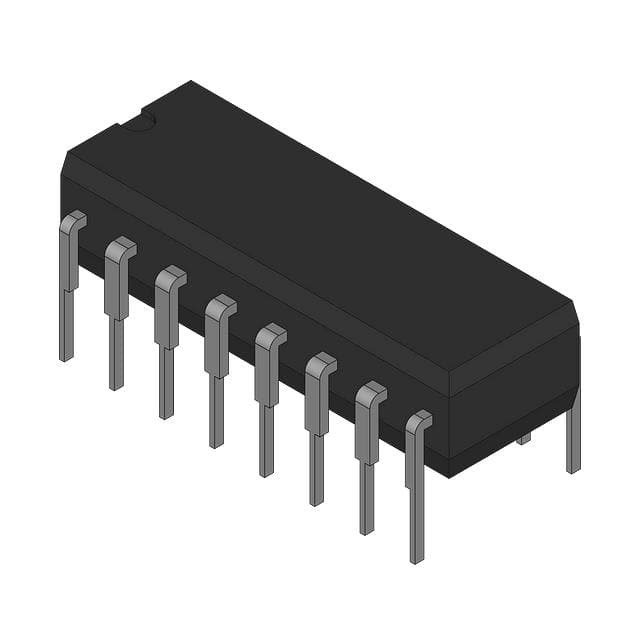

Analog Multiplexer Dual 4:1 Automotive 16-Pin PDIP Tube

4560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	6@5V
Maximum Turn-On Time (ns)	28@2.5V
Maximum Turn-Off Time (ns)	28@2.5V
Maximum Frequency (25°C) @ Vcc (MHz)	30(Typ)@2.3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	0.02@5.5V@-40C to 85C
Maximum On Resistance (Ohm)	180@2.3V
Maximum On Resistance Range (Ohm)	150 to 250
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	16
