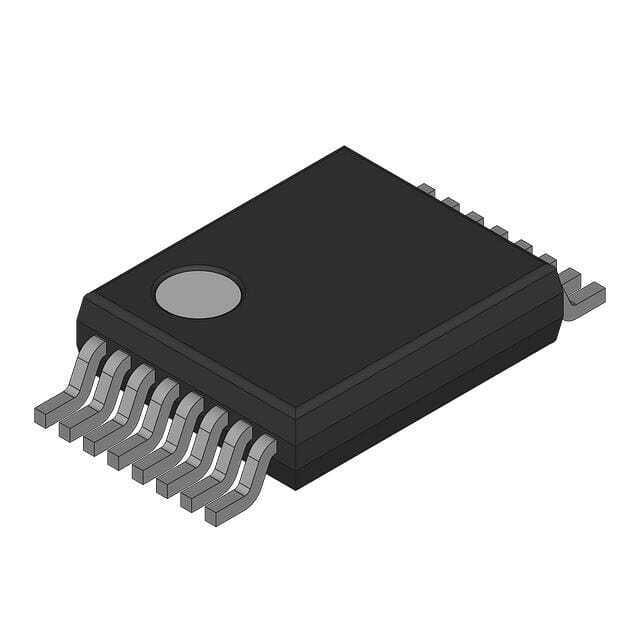

SN74LV161ADGVR

SKU: 64217

Manufacturer: Texas Instruments

Counter Single 4-Bit Sync Binary UP 16-Pin TVSOP T/R

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	Binary
Logic Family	LV
Logic Function	Counter
Operation Mode	UP Counter
Number of Elements per pcs	1
Number of Element Inputs	4
Number of Count Input Enables	2
Number of Selection Inputs per Element	0
Number of Element Outputs	4
Number of Stages	4
Reset Type	Asynchronous
Preset Type	Synchronous
Direction Type	Uni-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	19.2@2.5V
Absolute Propagation Delay Time (ns)	27.5
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5
Maximum Quiescent Current (mA)	0.02
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	Yes
Terminal Count Output	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	16
Original Package	TVSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.7(Max)
Package Width	4.5(Max)
PCB changed	16
