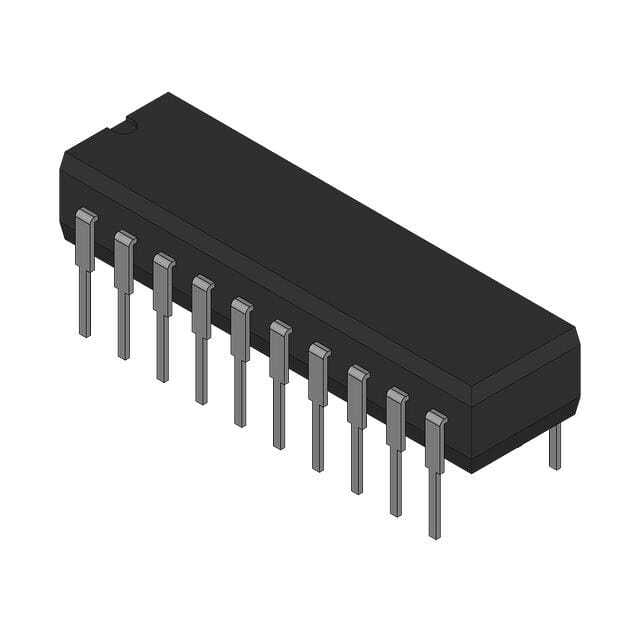

SN74LS684NS

SKU: 16889

Manufacturer: Texas Instruments

Magnitude Comparator 8-Bit 20-Pin SOP Tube

2560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Type	Magnitude Comparator
Logic Family	LS
Number of Bits	8
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	30@5V
Absolute Propagation Delay Time (ns)	30
Process Technology	Bipolar
Output Function	A=B, A>B
Output Type	Totem-Pole
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-0.4
Operating Supply Voltage-Min (V)	4.85
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Propagation Delay Test Condition (pF)	45
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	20
Original Package	SOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	12.9(Max)
Package Width	5.6(Max)
PCB changed	20
