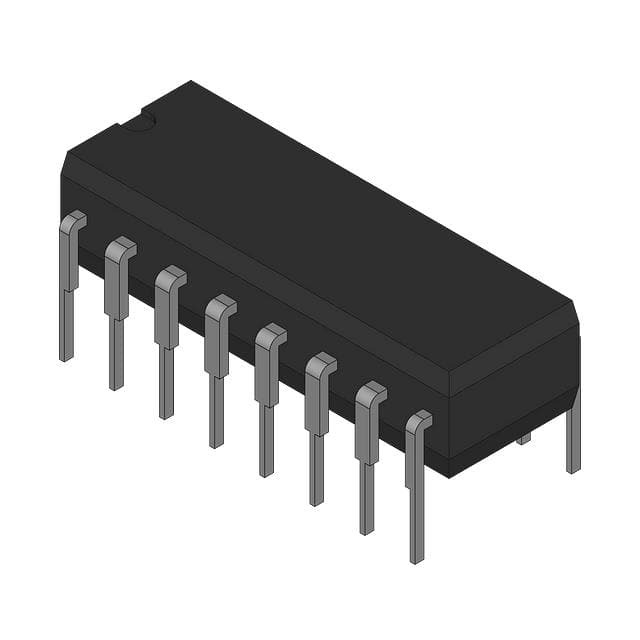

SN74LS148NS

SKU: 108702

Manufacturer: Texas Instruments

Encoder 8 to 3 Priority Bipolar 16-Pin SOP Tube

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Priority
Logic Family	LS
Number of Element Inputs	8
Number of Input Enables per Element	1
Number of Element Outputs	3
Number of Output Enables per Element	0
Number of Encoded Keys	0
Clock Controlling Signal	No
Maximum Propagation Delay Time @ Maximum CL (ns)	36@5V
Absolute Propagation Delay Time (ns)	55
Process Technology	Bipolar
Output Drive Capability	-0.4mA/8mA
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Power Dissipation (mW)	60(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	16
Original Package	SOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	16
