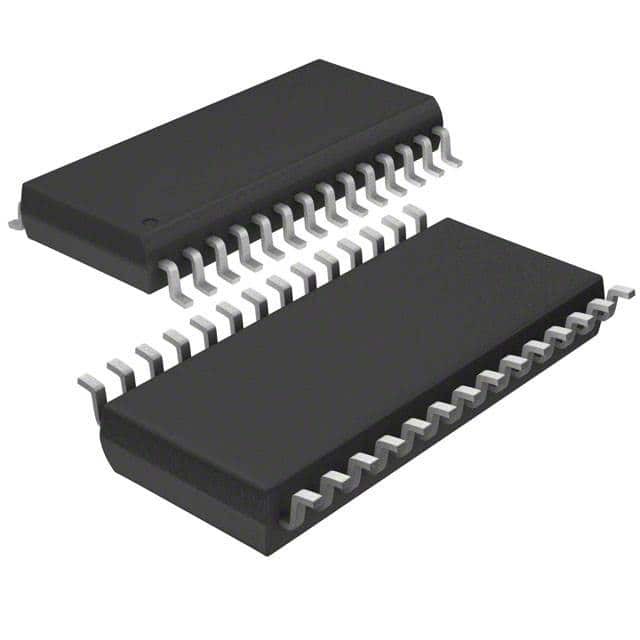

SN74GTL2107PW

SKU: 38144

Manufacturer: Texas Instruments

Translator GTL/GTL+/GTL- to LVTTL/LVTTL to GTL/GTL+/GTL- 12-CH Unidirectional 28-Pin TSSOP Tube

190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	GTL
Logic Function	Translator
Translation	GTL/GTL+/GTL- to LVTTL
Channel Type	Unidirectional
Number of Channels	12
Maximum Propagation Delay Time @ Maximum CL (ns)	14(Typ)@3.3V
Absolute Propagation Delay Time (ns)	350
Minimum High Level Input Voltage (V)	2
Process Technology	BiCMOS
Output Type	Open Drain
Maximum Low Level Output Current (mA)	16
Maximum High Level Output Current (mA)	-16
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	12
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	28
Original Package	TSSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
