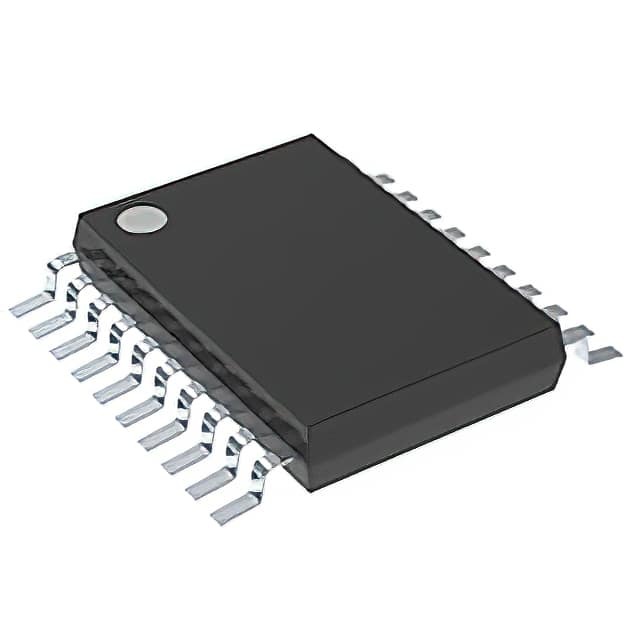

SN74GTL2003PW

SKU: 38146

Manufacturer: Texas Instruments

Voltage Level Translator GTL/GTL+ to LVTTL/TTL 20-Pin TSSOP Tube

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	GTL
Logic Function	Voltage Level Translator
Translation	GTL/GTL+ to LVTTL/TTL
Channel Type	Bidirectional
Number of Channels	8
Maximum Propagation Delay Time @ Maximum CL (ns)	1.5(Typ)@3.3V@2.5V
Absolute Propagation Delay Time (ns)	5.5
Process Technology	BiCMOS
Output Type	Open Drain
Operating Supply Voltage-Min (V)	0
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Original Package	TSSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
