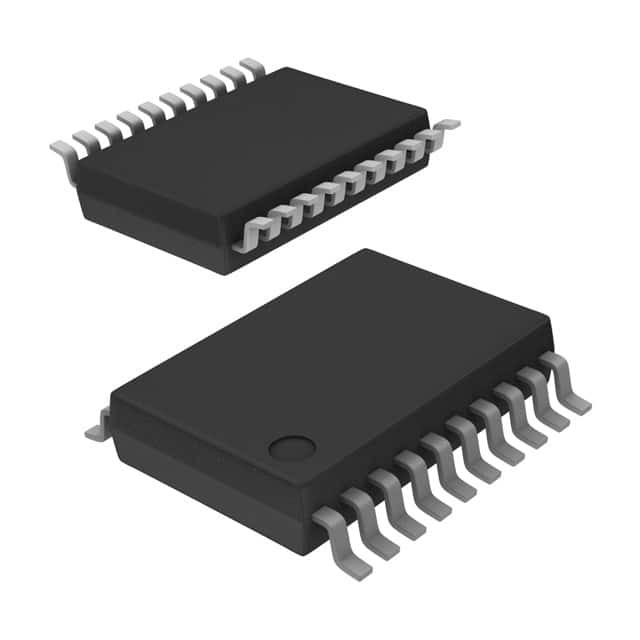

SN74F374DBR

SKU: 120721

Manufacturer: Texas Instruments

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R

90 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	F
Logic Function	D-Type Bus Interface
Number of Channels per Chip	8
Number of Elements per pcs	1
Number of Element Inputs	8
Number of Element Outputs	8
Number of Output Enables per Element	1
Bus Hold	No
Polarity	Non-Inverting
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	8.5@5V
Absolute Propagation Delay Time (ns)	12.5
Process Technology	Bipolar
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-3
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	20
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	7.5(Max)
Package Width	5.6(Max)
PCB changed	20
