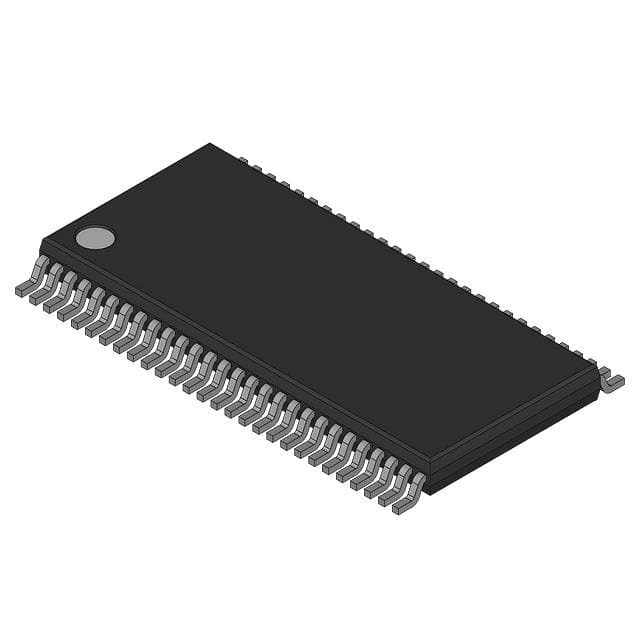

SN74CBT16212ADGG

SKU: 57171

Manufacturer: Texas Instruments

12-CHBus Exchange Switch 1-Element 24-IN- 24-OUT 56-Pin TSSOP T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	CBT
Number of Elements per pcs	1
Number of Inputs per Chip	24
Number of Outputs per Chip	24
Process Technology	CMOS
Absolute Propagation Delay Time (ns)	10.4
Maximum Propagation Delay Time @ Maximum CL (ns)	0.35@4V
Maximum On Resistance (Ohm)	14(Typ)
Maximum High Level Output Current (mA)	-128
Maximum Low Level Output Current (mA)	128
Operating Supply Voltage-Min (V)	4
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	3
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	56
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
