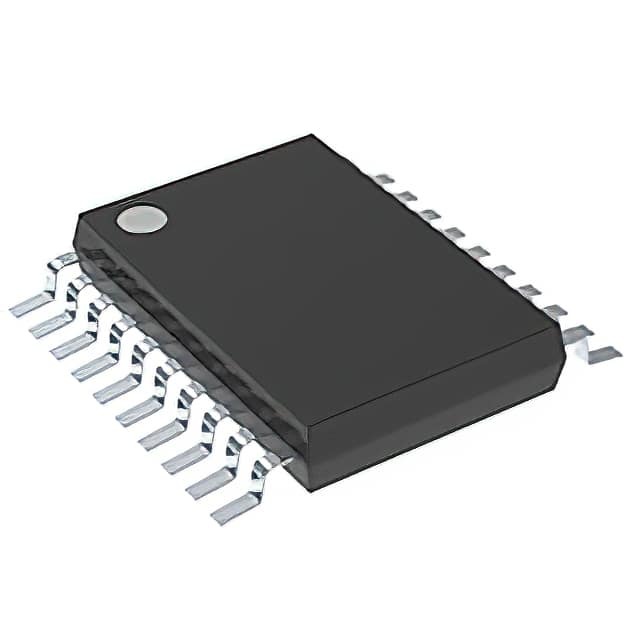

SN74CB3Q3245PWR

SKU: 50084

Manufacturer: Texas Instruments

Bus Switch 1-Element CMOS 8-IN 20-Pin TSSOP T/R

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Function	Bus Switch
Logic Family	CB3Q
Number of Elements per pcs	1
Number of Inputs per Chip	8
Number of Outputs per Chip	8
Absolute Propagation Delay Time (ns)	7.5
Process Technology	CMOS
Maximum Propagation Delay Time @ Maximum CL (ns)	0.2@3.3V
Maximum On Resistance (Ohm)	4.5(Typ)
Maximum High Level Output Current (mA)	-64
Maximum Low Level Output Current (mA)	64
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (uA)	2000
Typical Quiescent Current (uA)	1000
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
