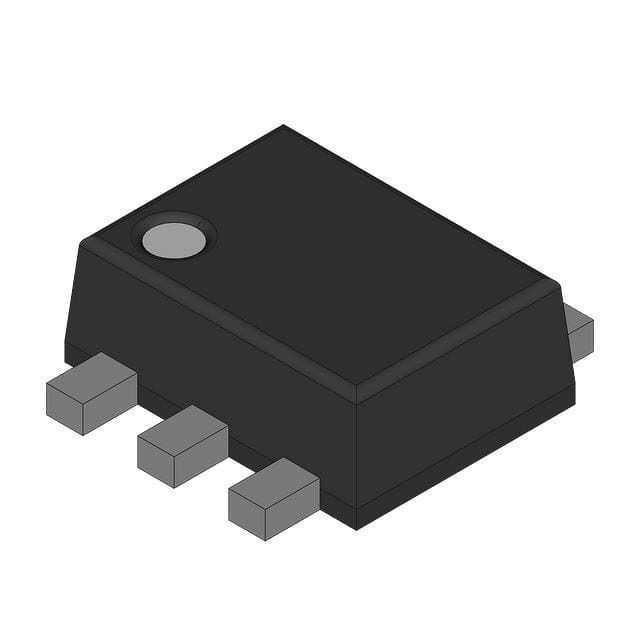

SN74AUC1G19DRLR

SKU: 50076

Manufacturer: Texas Instruments

Decoder/Demultiplexer Single 1-to-2 6-Pin SOT-563 T/R

3330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AUC
Logic Function	Decoder/Demultiplexer
Demultiplexing Capability	1-of-2
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Input Enables per Element	1
Number of Element Outputs	2
Number of Output Enables per Element	0
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	2.8@1.8V
Absolute Propagation Delay Time (ns)	7.5(Typ)
Process Technology	CMOS
Maximum Low Level Output Current (mA)	9
Maximum High Level Output Current (mA)	-9
Operating Supply Voltage-Min (V)	0.8
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	2.7
Tolerant I/Os (V)	3.6 Inputs
Maximum Quiescent Current (mA)	0.01
Propagation Delay Test Condition (pF)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Original Package	SOT-563
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	1.7(Max)
Package Width	1.3(Max)
PCB changed	6
