SN74ALS841NT

SKU: 16877

Manufacturer: Texas Instruments

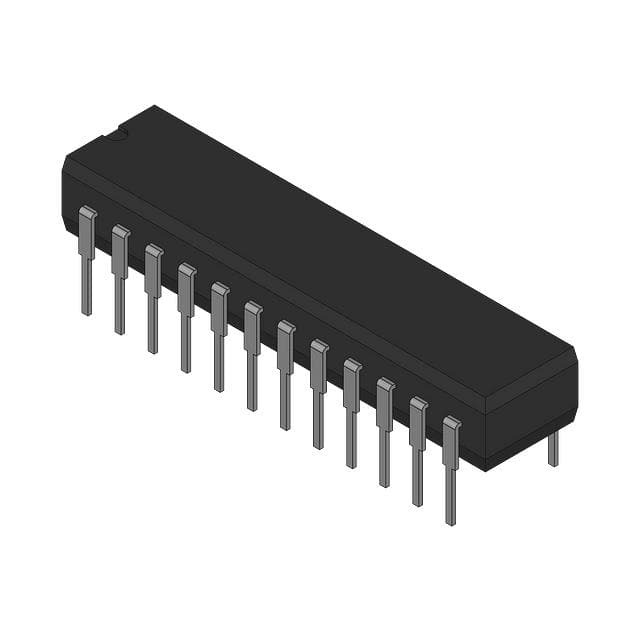

Latch Transparent 3-ST 10-CH D-Type 24-Pin PDIP Tube

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	D-Type
Logic Family	ALS
Latch Mode	Transparent
Number of Channels per Chip	10
Number of Elements per pcs	1
Number of Inputs per Chip	10
Number of Input Enables per Element	1
Number of Selection Inputs per Element	0
Number of Outputs per Chip	10
Number of Output Enables per Element	1
Bus Hold	No
Set/Reset	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	13@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	26
Process Technology	Bipolar
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-2.6
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PDIP
Pin Count	24
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	32.04(Max)
Package Width	7.11(Max)
PCB changed	24
