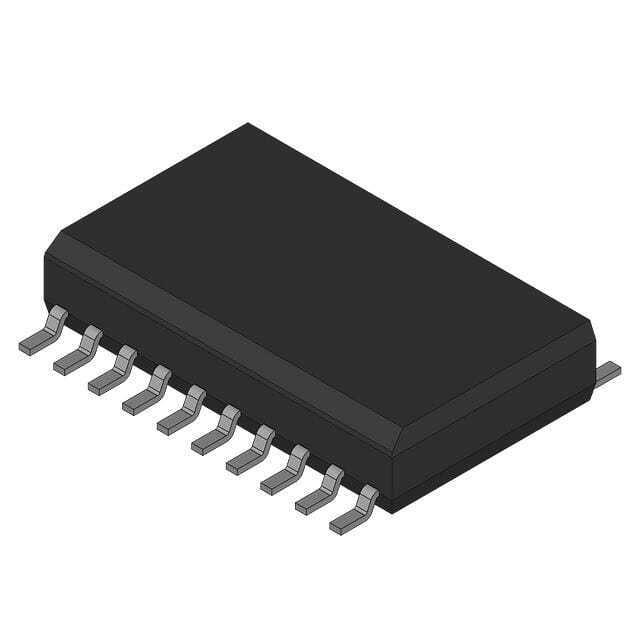

SN74ALS569ADWR

SKU: 23900

Manufacturer: Texas Instruments

Counter Single 4-Bit Binary UP/Down 20-Pin SOIC T/R

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Binary
Logic Family	ALS
Logic Function	Counter
Operation Mode	Down Counter
Number of Elements per pcs	1
Number of Element Inputs	4
Number of Count Input Enables	2
Number of Selection Inputs per Element	0
Number of Element Outputs	4
Number of Stages	4
Reset Type	Synchronous
Direction Type	Bi-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	16@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	28
Process Technology	Bipolar
Output Type	3-State
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	Yes
Terminal Count Output	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	20
Original Package	SOIC
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20

Your name

Your email

Enquiry
