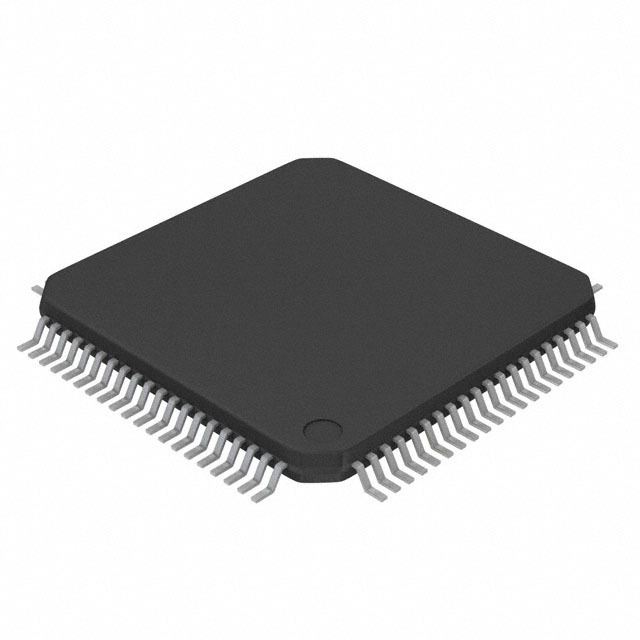

SN74ABTH32316PN

SKU: 92226

Manufacturer: Texas Instruments

Universal Bus Exchanger 1-Element 48 80-Pin LQFP Tray

800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ABT
Number of Elements per pcs	1
Number of Inputs per Chip	48
Number of Outputs per Chip	48
Maximum Frequency (GHz)	0.15(Min)@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	7.5
Maximum Propagation Delay Time @ Maximum CL (ns)	7.5@4.5V to 5.5V
Process Technology	BiCMOS
Output Type	3-State
Polarity	Non-Inverting
Maximum High Level Output Current (mA)	-32
Maximum Low Level Output Current (mA)	64
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	40000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Pin Count	80
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	12.2(Max)
Package Width	12.2(Max)
PCB changed	80
