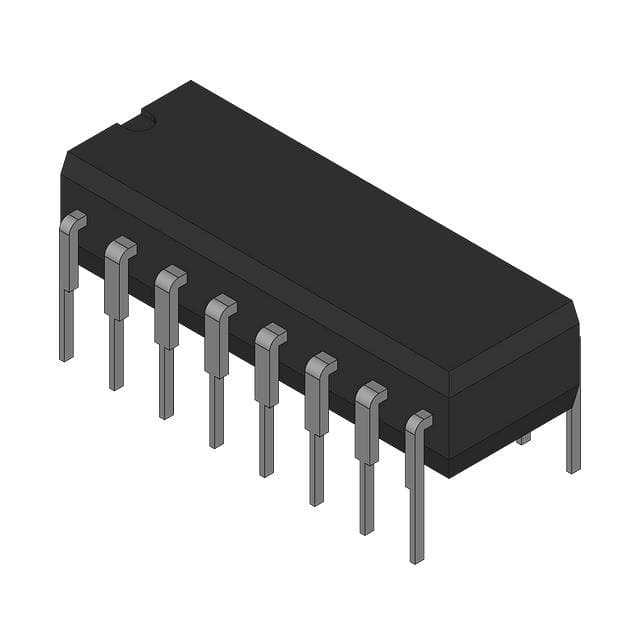

SN7445NS

SKU: 38127

Manufacturer: Texas Instruments

Decoder/Driver Single 4-to-10 16-Pin SOP Tube

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	TTL
Logic Function	Decoder/Driver
Demultiplexing Capability	1-of-10
Number of Elements per pcs	1
Number of Element Inputs	4
Number of Input Enables per Element	0
Number of Element Outputs	10
Number of Output Enables per Element	0
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	50@5V
Absolute Propagation Delay Time (ns)	50
Process Technology	Bipolar
Maximum Low Level Output Current (mA)	80
Maximum High Level Output Current (mA)	-0.25
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Quiescent Current (mA)	43(Typ)
Propagation Delay Test Condition (pF)	15
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	16
Original Package	SOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	16
