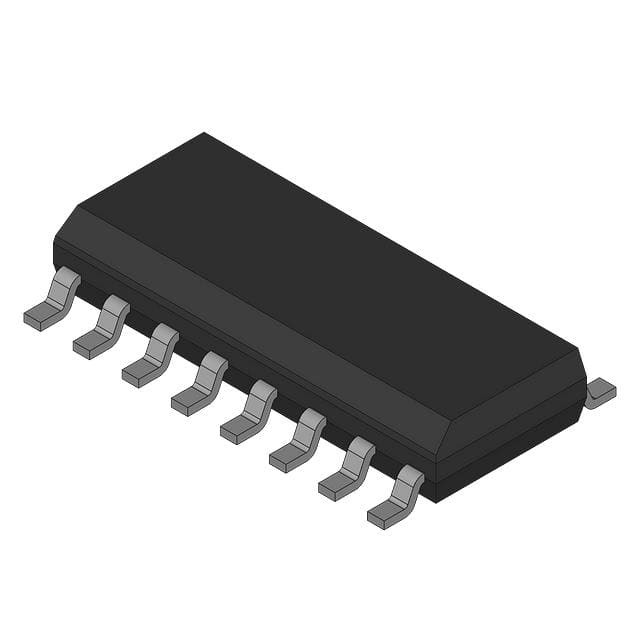

SN7400NS Texas Instruments

SN7400NS

SKU: 42898

Manufacturer: Texas Instruments

NAND Gate 4-Element 2-IN Bipolar 14-Pin SOP Tube

Request Free Samples

2880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	TTL
Logic Function	NAND
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	22@5V
Absolute Propagation Delay Time (ns)	22
Process Technology	Bipolar
Output Type	Push-Pull
Maximum Low Level Output Current (mA)	16
Maximum High Level Output Current (mA)	-0.4
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Propagation Delay Test Condition (pF)	15
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Standard Package Method	SOP
Pin Count	14
Original Package	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	14
